Step 7: OMX Teleoperation Example

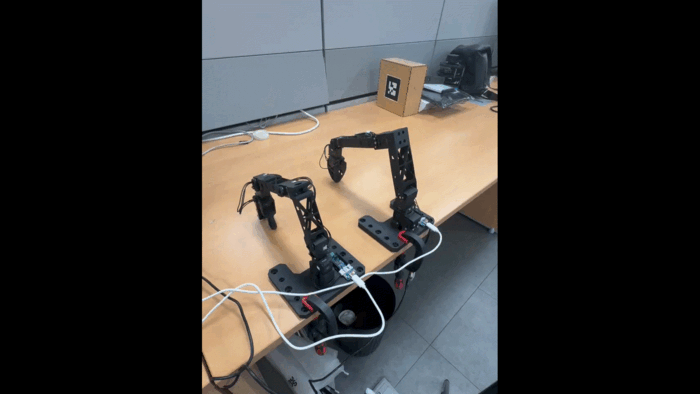

This tutorial shows you example that OMX teleoperates Dynamixel using the Dynamixel Easy SDK.
Unlike single motor control, commands are executed all at once, allowing all motors to be controlled with a single packet. This enables a faster control cycle.
With an OMX leader and follower, you can create your own teleoperation system in just a few lines of code.

NOTE: This tutorial explains how to write code using the Dynamixel Easy SDK. It assumes that you have already installed the SDK.

Make py file

Create a new Python source file Open it with your editor.
```
$ touch tutorial_step7.py
```

Check the Port Names

Before running the code, check the port name of the connected Dynamixel.
For General
- OpenRB-150: ttyACM0: USB ACM device
- U2D2: FTDI USB Serial Device converter now attached to ttyUSB0
```
$ sudo dmesg | grep tty
```

Source Code Description

from dynamixel_easy_sdk import *

def main():

    connector_leader = Connector("/dev/ttyACM1", 1000000)
    connector_follower = Connector("/dev/ttyACM0", 1000000)
    group_executor_leader = connector_leader.createGroupExecutor()
    group_executor_follower = connector_follower.createGroupExecutor()

    leader_motor1 = connector_leader.createMotor(1)
    leader_motor2 = connector_leader.createMotor(2)
    leader_motor3 = connector_leader.createMotor(3)
    leader_motor4 = connector_leader.createMotor(4)
    leader_motor5 = connector_leader.createMotor(5)
    leader_motor_gripper = connector_leader.createMotor(6)

    follower_motor1 = connector_follower.createMotor(11)
    follower_motor2 = connector_follower.createMotor(12)
    follower_motor3 = connector_follower.createMotor(13)
    follower_motor4 = connector_follower.createMotor(14)
    follower_motor5 = connector_follower.createMotor(15)
    follower_motor_gripper = connector_follower.createMotor(16)

    follower_motor1.enableTorque()
    follower_motor2.enableTorque()
    follower_motor3.enableTorque()
    follower_motor4.enableTorque()
    follower_motor5.enableTorque()
    follower_motor_gripper.enableTorque()

    while True:
      group_executor_leader.addCmd(leader_motor1.stageGetPresentPosition())
      group_executor_leader.addCmd(leader_motor2.stageGetPresentPosition())
      group_executor_leader.addCmd(leader_motor3.stageGetPresentPosition())
      group_executor_leader.addCmd(leader_motor4.stageGetPresentPosition())
      group_executor_leader.addCmd(leader_motor5.stageGetPresentPosition())
      group_executor_leader.addCmd(leader_motor_gripper.stageGetPresentPosition())

      leader_motor_positions = group_executor_leader.executeRead()
      group_executor_leader.clearStagedReadCommands()
      leader_motor1_position = leader_motor_positions[0]
      leader_motor2_position = leader_motor_positions[1]
      leader_motor3_position = leader_motor_positions[2]
      leader_motor4_position = leader_motor_positions[3]
      leader_motor5_position = leader_motor_positions[4]
      leader_motor_gripper_position = leader_motor_positions[5]

      group_executor_follower.addCmd(follower_motor1.stageSetGoalPosition(leader_motor1_position))
      group_executor_follower.addCmd(follower_motor2.stageSetGoalPosition(leader_motor2_position))
      group_executor_follower.addCmd(follower_motor3.stageSetGoalPosition(leader_motor3_position))
      group_executor_follower.addCmd(follower_motor4.stageSetGoalPosition(leader_motor4_position))
      group_executor_follower.addCmd(follower_motor5.stageSetGoalPosition(leader_motor5_position))
      group_executor_follower.addCmd(follower_motor_gripper.stageSetGoalPosition(leader_motor_gripper_position))
      group_executor_follower.executeWrite()
      group_executor_follower.clearStagedWriteCommands()

if __name__ == "__main__":
    main()

Import Library

Import dynamixel_easy_sdk.
```
from dynamixel_easy_sdk import *
```

Create Connector and Motor Object

Create a Connector object.
In OMX, two separate OpenRB adapters are used for the leader and follower motors, so create two Connector objects with different port names.
On OMX, the default baud rate is 1,000,000.

NOTE:

Port names may vary depending on your system configuration.

  def main():
      connector_leader = Connector("/dev/ttyACM1", 1000000)
      connector_follower = Connector("/dev/ttyACM0", 1000000)

Create each GroupExecutor objects using the createGroupExecutor method of the Connector class.

This object is used to execute multiple commands simultaneously.

    group_executor_leader = connector_leader.createGroupExecutor()
    group_executor_follower = connector_follower.createGroupExecutor()

Create a Motor objects for each Dynamixels, using the createMotor method of the Connector class.

In OMX, the leader motors have IDs 1 to 6, and the follower motors have IDs 11 to 16.

    leader_motor1 = connector_leader.createMotor(1)
    leader_motor2 = connector_leader.createMotor(2)
    leader_motor3 = connector_leader.createMotor(3)
    leader_motor4 = connector_leader.createMotor(4)
    leader_motor5 = connector_leader.createMotor(5)
    leader_motor_gripper = connector_leader.createMotor(6)

    follower_motor1 = connector_follower.createMotor(11)
    follower_motor2 = connector_follower.createMotor(12)
    follower_motor3 = connector_follower.createMotor(13)
    follower_motor4 = connector_follower.createMotor(14)
    follower_motor5 = connector_follower.createMotor(15)
    follower_motor_gripper = connector_follower.createMotor(16)

Enable Follower Torque

Enable the torque of the follower motors for teleoperation.

    follower_motor1.enableTorque()
    follower_motor2.enableTorque()
    follower_motor3.enableTorque()
    follower_motor4.enableTorque()
    follower_motor5.enableTorque()
    follower_motor_gripper.enableTorque()

Leader and Follower Control Loop

In a loop, read the present position of the leader motors simultaneously using the stageGetPresentPosition method and set the goal position of the follower motors simultaneously to the same value using the stageSetGoalPosition method.

  while True:
      group_executor_leader.addCmd(leader_motor1.stageGetPresentPosition())
      group_executor_leader.addCmd(leader_motor2.stageGetPresentPosition())
      group_executor_leader.addCmd(leader_motor3.stageGetPresentPosition())
      group_executor_leader.addCmd(leader_motor4.stageGetPresentPosition())
      group_executor_leader.addCmd(leader_motor5.stageGetPresentPosition())
      group_executor_leader.addCmd(leader_motor_gripper.stageGetPresentPosition())

      leader_motor_positions = group_executor_leader.executeRead()
      group_executor_leader.clearStagedReadCommands()
      leader_motor1_position = leader_motor_positions[0]
      leader_motor2_position = leader_motor_positions[1]
      leader_motor3_position = leader_motor_positions[2]
      leader_motor4_position = leader_motor_positions[3]
      leader_motor5_position = leader_motor_positions[4]
      leader_motor_gripper_position = leader_motor_positions[5]

      group_executor_follower.addCmd(follower_motor1.stageSetGoalPosition(leader_motor1_position))
      group_executor_follower.addCmd(follower_motor2.stageSetGoalPosition(leader_motor2_position))
      group_executor_follower.addCmd(follower_motor3.stageSetGoalPosition(leader_motor3_position))
      group_executor_follower.addCmd(follower_motor4.stageSetGoalPosition(leader_motor4_position))
      group_executor_follower.addCmd(follower_motor5.stageSetGoalPosition(leader_motor5_position))
      group_executor_follower.addCmd(follower_motor_gripper.stageSetGoalPosition(leader_motor_gripper_position))
      group_executor_follower.executeWrite()
      group_executor_follower.clearStagedWriteCommands()

Make cpp file

Create a new C++ source file Open it with your editor.
```
$ touch tutorial_step7.cpp
```

Check the Port Names

Before running the code, check the port name of the connected Dynamixel.
For General
- OpenRB-150: ttyACM0: USB ACM device
- U2D2: FTDI USB Serial Device converter now attached to ttyUSB0
```
$ sudo dmesg | grep tty
```

Source Code Description

#include "dynamixel_easy_sdk/dynamixel_easy_sdk.hpp"

int main(){

  dynamixel::Connector connector_leader("/dev/ttyACM1", 1000000);
  dynamixel::Connector connector_follower("/dev/ttyACM0", 1000000);
  std::unique_ptr<dynamixel::GroupExecutor> group_executor_leader = connector_leader.createGroupExecutor();
  std::unique_ptr<dynamixel::GroupExecutor> group_executor_follower = connector_follower.createGroupExecutor();

  std::unique_ptr<dynamixel::Motor> leader_motor1 = connector_leader.createMotor(1);
  std::unique_ptr<dynamixel::Motor> leader_motor2 = connector_leader.createMotor(2);
  std::unique_ptr<dynamixel::Motor> leader_motor3 = connector_leader.createMotor(3);
  std::unique_ptr<dynamixel::Motor> leader_motor4 = connector_leader.createMotor(4);
  std::unique_ptr<dynamixel::Motor> leader_motor5 = connector_leader.createMotor(5);
  std::unique_ptr<dynamixel::Motor> leader_motor_gripper = connector_leader.createMotor(6);

  std::unique_ptr<dynamixel::Motor> follower_motor1 = connector_follower.createMotor(11);
  std::unique_ptr<dynamixel::Motor> follower_motor2 = connector_follower.createMotor(12);
  std::unique_ptr<dynamixel::Motor> follower_motor3 = connector_follower.createMotor(13);
  std::unique_ptr<dynamixel::Motor> follower_motor4 = connector_follower.createMotor(14);
  std::unique_ptr<dynamixel::Motor> follower_motor5 = connector_follower.createMotor(15);
  std::unique_ptr<dynamixel::Motor> follower_motor_gripper = connector_follower.createMotor(16);

  follower_motor1->enableTorque();
  follower_motor2->enableTorque();
  follower_motor3->enableTorque();
  follower_motor4->enableTorque();
  follower_motor5->enableTorque();
  follower_motor_gripper->enableTorque();

  while(true){
    group_executor_leader->addCmd(leader_motor1->stageGetPresentPosition());
    group_executor_leader->addCmd(leader_motor2->stageGetPresentPosition());
    group_executor_leader->addCmd(leader_motor3->stageGetPresentPosition());
    group_executor_leader->addCmd(leader_motor4->stageGetPresentPosition());
    group_executor_leader->addCmd(leader_motor5->stageGetPresentPosition());
    group_executor_leader->addCmd(leader_motor_gripper->stageGetPresentPosition());

    auto result = group_executor_leader->executeRead();
    group_executor_leader->clearStagedReadCommands();
    int leader_motor1_position = result.value()[0].value();
    int leader_motor2_position = result.value()[1].value();
    int leader_motor3_position = result.value()[2].value();
    int leader_motor4_position = result.value()[3].value();
    int leader_motor5_position = result.value()[4].value();
    int leader_motor_gripper_position = result.value()[5].value();

    group_executor_follower->addCmd(follower_motor1->stageSetGoalPosition(leader_motor1_position));
    group_executor_follower->addCmd(follower_motor2->stageSetGoalPosition(leader_motor2_position));
    group_executor_follower->addCmd(follower_motor3->stageSetGoalPosition(leader_motor3_position));
    group_executor_follower->addCmd(follower_motor4->stageSetGoalPosition(leader_motor4_position));
    group_executor_follower->addCmd(follower_motor5->stageSetGoalPosition(leader_motor5_position));
    group_executor_follower->addCmd(follower_motor_gripper->stageSetGoalPosition(leader_motor_gripper_position));
    auto result_void = group_executor_follower->executeWrite();
    group_executor_follower->clearStagedWriteCommands();
  }
}

Add Header Files

Add dynamixel_easy_sdk/dynamixel_easy_sdk.hpp to the top of your CPP file. This class is included in the Dynamixel SDK package.
```
#include "dynamixel_easy_sdk/dynamixel_easy_sdk.hpp"
```

Create Connector and Motor Object

Create a Connector object.
In OMX, two separate OpenRB adapters are used for the leader and follower motors, so create two Connector objects with different port names.
On OMX, the default baud rate is 1,000,000.

NOTE:

Port names may vary depending on your system configuration.

  int main(){
    dynamixel::Connector connector_leader("/dev/ttyACM1", 1000000);
    dynamixel::Connector connector_follower("/dev/ttyACM0", 1000000);

Create each GroupExecutor objects using the createGroupExecutor method of the Connector class.

This object is used to execute multiple commands simultaneously.

  std::unique_ptr<dynamixel::GroupExecutor> group_executor_leader = connector_leader.createGroupExecutor();
  std::unique_ptr<dynamixel::GroupExecutor> group_executor_follower = connector_follower.createGroupExecutor();

Create a Motor objects for each Dynamixels, using the createMotor method of the Connector class.

In OMX, the leader motors have IDs 1 to 6, and the follower motors have IDs 11 to 16.

  std::unique_ptr<dynamixel::Motor> leader_motor1 = connector_leader.createMotor(1);
  std::unique_ptr<dynamixel::Motor> leader_motor2 = connector_leader.createMotor(2);
  std::unique_ptr<dynamixel::Motor> leader_motor3 = connector_leader.createMotor(3);
  std::unique_ptr<dynamixel::Motor> leader_motor4 = connector_leader.createMotor(4);
  std::unique_ptr<dynamixel::Motor> leader_motor5 = connector_leader.createMotor(5);
  std::unique_ptr<dynamixel::Motor> leader_motor_gripper = connector_leader.createMotor(6);

  std::unique_ptr<dynamixel::Motor> follower_motor1 = connector_follower.createMotor(11);
  std::unique_ptr<dynamixel::Motor> follower_motor2 = connector_follower.createMotor(12);
  std::unique_ptr<dynamixel::Motor> follower_motor3 = connector_follower.createMotor(13);
  std::unique_ptr<dynamixel::Motor> follower_motor4 = connector_follower.createMotor(14);
  std::unique_ptr<dynamixel::Motor> follower_motor5 = connector_follower.createMotor(15);
  std::unique_ptr<dynamixel::Motor> follower_motor_gripper = connector_follower.createMotor(16);

Enable Follower Torque

Enable the torque of the follower motors for teleoperation.

  follower_motor1->enableTorque();
  follower_motor2->enableTorque();
  follower_motor3->enableTorque();
  follower_motor4->enableTorque();
  follower_motor5->enableTorque();
  follower_motor_gripper->enableTorque();

Leader and Follower Control Loop

while(true){
  group_executor_leader->addCmd(leader_motor1->stageGetPresentPosition());
  group_executor_leader->addCmd(leader_motor2->stageGetPresentPosition());
  group_executor_leader->addCmd(leader_motor3->stageGetPresentPosition());
  group_executor_leader->addCmd(leader_motor4->stageGetPresentPosition());
  group_executor_leader->addCmd(leader_motor5->stageGetPresentPosition());
  group_executor_leader->addCmd(leader_motor_gripper->stageGetPresentPosition());

  auto result = group_executor_leader->executeRead();
  group_executor_leader->clearStagedReadCommands();
  int leader_motor1_position = result.value()[0].value();
  int leader_motor2_position = result.value()[1].value();
  int leader_motor3_position = result.value()[2].value();
  int leader_motor4_position = result.value()[3].value();
  int leader_motor5_position = result.value()[4].value();
  int leader_motor_gripper_position = result.value()[5].value();

  group_executor_follower->addCmd(follower_motor1->stageSetGoalPosition(leader_motor1_position));
  group_executor_follower->addCmd(follower_motor2->stageSetGoalPosition(leader_motor2_position));
  group_executor_follower->addCmd(follower_motor3->stageSetGoalPosition(leader_motor3_position));
  group_executor_follower->addCmd(follower_motor4->stageSetGoalPosition(leader_motor4_position));
  group_executor_follower->addCmd(follower_motor5->stageSetGoalPosition(leader_motor5_position));
  group_executor_follower->addCmd(follower_motor_gripper->stageSetGoalPosition(leader_motor_gripper_position));
  auto result_void = group_executor_follower->executeWrite();
  group_executor_follower->clearStagedWriteCommands();
}
}

Error Handling

To ensure your code is robust, every method that sends a command to the motor returns a Result object that encapsulates errors.
This object lets you safely check for any communication or device errors before proceeding.
executeRead() method returns Result<std::vector<Result<int32_t, Error», Error> type. So you need to check for errors twice.

You can check for communication errors and device(dynamixel) errors using the Result object.

Example

  auto result = group_executor->executeRead(); // type of 'result_void' variable is Result<void, DxlError>
  if (!result_void.isSuccess()) {
    std::cerr << dynamixel::getErrorMessage(result_void.error()) << std::endl;
    return 1;
  }
  std::vector<int> positions;
  for (const auto& result : result.value()) {
    if (!result.isSuccess()) {
      std::cerr << dynamixel::getErrorMessage(result.error()) << std::endl;
      return 1;
    }
    positions.push_back(result.value());
  }

stage functions return Result<void, Error> type.

You can either pass this value directly to the addCmd() function, or perform error checking first and then pass the resulting command value. Example

  auto result_cmd = motor1->stageGetPresentPosition(); // type of 'result_cmd' variable is Result<stagedCommand, DxlError>
  if (!result_cmd.isSuccess()) {
    std::cerr << dynamixel::getErrorMessage(result_cmd.error()) << std::endl;
    return 1;
  }
  group_executor->addCmd(result_cmd.value());

Compile and Run

You can compile and run the code using the following commands

$ g++ tutorial_step7.cpp -o tutorial_step7 -l dxl_x64_cpp
$ ./tutorial_step7
