Machine Learning

Machine learning, learning through experience, is a data analysis technique that teaches computers to recognize what is natural for people and animals. There are three types of machine learning: supervised learning, unsupervised learning, reinforcement learning.

This application is reinforcement learning with DQN (Deep Q-Learning). The reinforcement learning is concerned with how software agents ought to take actions in an environment, so as to maximize some notion of cumulative reward.

The contents in e-Manual are subject to be updated without a prior notice. Therefore, some video may differ from the contents in e-Manual.

This shows reinforcement learning with TurtleBot3 in gazebo. This reinforcement learning is applied DQN(Deep Q-Learning) algorithm with LDS.

NOTE: This manual is currently based on Melodic and needs to be upgraded to the Noetic version!.

Note: This package was built on Ubuntu 22.04 and ROS2 Humble, Python 3.10.

1. Install Requirements

   $ pip install --upgrade numpy==1.26.4 scipy==1.10.1 tensorflow==2.19.0 keras==3.9.2 pyqtgraph





2. Machine Learning packages

   WARNING: Be sure to install turtlebot3, turtlebot3_msgs and turtlebot3_simulations package before installation of machine learning packages.

    $ cd ~/turtlebot3_ws/src/
    $ git clone -b humble https://github.com/ROBOTIS-GIT/turtlebot3_machine_learning.git
    $ cd ~/turtlebot3_ws && colcon build --symlink-install


To do this tutorial, you need to install Tensorflow, Keras and Anaconda with Ubuntu 18.04 and ROS1 Melodic.

Anaconda

You can download Anaconda 5.2.0 for Python 2.7 version.

After downloading Andaconda, go to the directory where the downloaded file is located at and enter the follow command.

Review and accept the license terms by entering yes in the terminal.
Also add the Anaconda2 install location to PATH in the .basrhc file.

$ bash Anaconda2-5.2.0-Linux-x86_64.sh

After installing Anaconda,

$ source ~/.bashrc
$ python -V

If Anaconda is installed successfuly, Python 2.7.xx :: Anaconda, Inc. will be returned in the terminal.

ROS dependency packages

Install required packages first.

$ pip install msgpack argparse

To use ROS and Anaconda together, you must additionally install ROS dependency packages.

$ pip install -U rosinstall empy defusedxml netifaces

Tensorflow

This tutorial uses python 2.7(CPU only). If you want to use another python version and GPU, please refer to TensorFlow.

$ pip install --ignore-installed --upgrade https://storage.googleapis.com/tensorflow/linux/cpu/tensorflow-1.8.0-cp27-none-linux_x86_64.whl

Keras

Keras is a high-level neural networks API, written in Python and capable of running on top of TensorFlow.

$ pip install keras==2.1.5

Incompatible error messages regarding the tensorboard can be ignored as it is not used in this example, but it can be resolved by installing tensorboard as below.

$ pip install tensorboard

Machine Learning packages

WARNING: Please install turtlebot3, turtlebot3_msgs and turtlebot3_simulations package before installing this package.

$ cd ~/catkin_ws/src/
$ git clone https://github.com/ROBOTIS-GIT/turtlebot3_machine_learning.git
$ cd ~/catkin_ws && catkin_make

Machine Learning is running on a Gazebo simulation world. If you haven’t installed the TurtleBot3 simulation package, please install with the command below.

$ cd ~/catkin_ws/src/
$ git clone -b melodic-devel https://github.com/ROBOTIS-GIT/turtlebot3_simulations.git
$ cd ~/catkin_ws && catkin_make

Completely uninstall and reinstall numpy to rectify problems. You may need to perform uninstall a few times until numpy is completely uninstalled.

$ pip uninstall numpy
$ pip show numpy
$ pip uninstall numpy
$ pip show numpy

At this point, numpy should be completed uninstalled and you should not see any numpy information when entering pip show numpy.

Reinstall the numpy.

$ pip install numpy pyqtgraph

The goal of DQN Agent is to get the TurtleBot3 to the goal avoiding obstacles. When TurtleBot3 gets closer to the goal, it gets a positive reward, and when it gets farther it gets a negative reward. The episode ends when the TurtleBot3 crashes on an obstacle or after a certain period of time. During the episode, TurtleBot3 gets a big positive reward when it gets to the goal, and TurtleBot3 gets a big negative reward when it crashes on an obstacle.

Set state

State is an observation of environment and describes the current situation. Here, state_size is 26 and has 24 LDS values, distance to goal, and angle to goal.

Turtlebot3’s LDS default is set to 360. You can modify sample of LDS at /turtlebot3_simulations/turtlebot3_gazebo/models/turtlebot3_burger/model.sdf.

gedit ~/turtlebot3_ws/src/turtlebot3_simulations/turtlebot3_gazebo/models/turtlebot3_burger/model.sdf

<sensor name="hls_lfcd_lds" type="ray">    # Find the "hls_lfcd_lds"
  <visualize>true</visualize>    # Visualization of LDS. If you don't want to see LDS, set to `false`

<scan>
  <horizontal>
    <samples>360</samples>    # The number of sample. Modify it to 24
    <resolution>1.000000</resolution>
    <min_angle>0.000000</min_angle>
    <max_angle>6.280000</max_angle>
  </horizontal>
</scan>

Note
More lidar points can be used, but they require more computing resources. To use a different number of lidar points, replace state_size in Hyper parameter.

sample = 360	sample = 24

Set action

• Action is what an agent can do in each state. Here, turtlebot3 has always 0.15 m/s of linear velocity. angular velocity is determined by action.

Set reward

• When turtlebot3 takes an action in a state, it receives a reward. The reward design is very important for learning. A reward can be positive or negative. When turtlebot3 gets to the goal, it gets big positive reward. When turtlebot3 collides with an obstacle, it gets big negative reward. If you want to apply your reward design, modify calculate_reward function at turtlebot3_machine_learning/turtlebot3_dqn/turtlebot3_dqn/dqn_environment.py.



1. Distance reward
   • Distance rewards use the difference between the previous distance to the goal and the present distance to the goal. And the distance to the goal in the present step becomes the distance to the goal in the next step.

     distance_reward = self.prev_goal_distance - self.goal_distance
     self.prev_goal_distance = self.goal_distance





2. Yaw reward

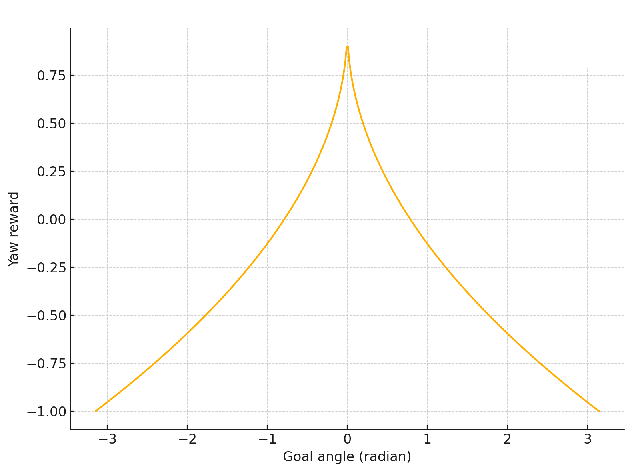

   • Yaw reward uses a square root based reward function. This has the following advantages over a linear function.

     yaw_reward = (1 - 2 * math.sqrt(math.fabs(self.goal_angle / math.pi)))


     • The smaller the angular error, the faster the compensation increases, making the rotation more sensitive to fine alignment and thus more accurate.
     • Rewards decrease modestly when errors are large, encouraging exploration without penalizing too much early on in learning.
     • Good balance between initial stability and final alignment accuracy.

3. Obstacle reward
   • Obstacle reward will negatively reward when TurtleBot get closer than 0.5 meters to an obstacle.

     obstacle_reward = 0.0
     if self.min_obstacle_distance < 0.50:
      obstacle_reward = -1.0





4. Total reward
   • Total reward uses the sum of the three rewards above. You can weight each reward to adjust the balance.

     reward = (distance_reward * 10) + (yaw_reward / 5) + obstacle_reward





Set hyper parameters

• This tutorial has been learned using DQN. DQN is a reinforcement learning method that selects a deep neural network by approximating the action-value function(Q-value). Agent has follow hyper parameters at /turtlebot3_machine_learning/turtlebot3_dqn/turtlebot3_dqn/dqn_agent.py.

The goal of DQN Agent is to get the TurtleBot3 to the goal avoiding obstacles. When TurtleBot3 gets closer to the goal, it gets a positive reward, and when it gets farther it gets a negative reward. The episode ends when the TurtleBot3 crashes on an obstacle or after a certain period of time. During the episode, TurtleBot3 gets a big positive reward when it gets to the goal, and TurtleBot3 gets a big negative reward when it crashes on an obstacle.

The contents in e-Manual are subject to be updated without a prior notice. Therefore, some video may differ from the contents in e-Manual.

Set state

State is an observation of environment and describes the current situation. Here, state_size is 26 and has 24 LDS values, distance to goal, and angle to goal.

Turtlebot3’s LDS default is set to 360. You can modify sample of LDS at turtlebot3/turtlebot3_description/urdf/turtlebot3_burger.gazebo.xacro.

<xacro:arg name="laser_visual" default="false"/>   # Visualization of LDS. If you want to see LDS, set to `true`

<scan>
  <horizontal>
    <samples>360</samples>            # The number of sample. Modify it to 24
    <resolution>1</resolution>
    <min_angle>0.0</min_angle>
    <max_angle>6.28319</max_angle>
  </horizontal>
</scan>

sample = 360	sample = 24

Set action

Action is what an agent can do in each state. Here, turtlebot3 has always 0.15 m/s of linear velocity. angular velocity is determined by action.

Set reward

When turtlebot3 takes an action in a state, it receives a reward. The reward design is very important for learning. A reward can be positive or negative. When turtlebot3 gets to the goal, it gets big positive reward. When turtlebot3 collides with an obstacle, it gets big negative reward. If you want to apply your reward design, modify setReward function at /turtlebot3_machine_learning/turtlebot3_dqn/src/turtlebot3_dqn/environment_stage_#.py.

Set hyper parameters

This tutorial has been learned using DQN. DQN is a reinforcement learning method that selects a deep neural network by approximating the action-value function(Q-value). Agent has follow hyper parameters at /turtlebot3_machine_learning/turtlebot3_dqn/nodes/turtlebot3_dqn_stage_#.

The contents in e-Manual are subject to be updated without a prior notice. Therefore, some video may differ from the contents in e-Manual.

Description of the stages

1. Stage 1 (No Obstacle)
   Stage 1 is a 4x4 map with no obstacles.





2. Stage 2 (Static Obstacle)
   Stage 2 is a 4x4 map with four cylinders of static obstacles.





3. Stage 3 (Moving Obstacle)
   Stage 3 is a 4x4 map with four cylinders of moving obstacles.





4. Stage 4 (Combination Obstacle)
   Stage 4 is a 5x5 map with walls and two cylinders of moving obstacles.





Understanding the Machine Learning simulation

1. Reset environment
   Before the start of an episode, reset the position of the goal and regenerate the goal.



2. Select an action
   The behavior is determined by epsilon value, which decreases as training progresses.


   • What is Q-value?
     • Q-value is a key concept in reinforcement learning, meaning the expected cumulative reward for performing an action in a state.
     • The agent tries to maximize its reward by choosing the action with the highest Q-value.
   • What is epsilon?
     • Epsilon is the probability of an agent doing an ‘Exploration’.
     • Exploration means trying out different behaviors because you don’t know much about the environment, so the Q value isn’t accurate yet.
     • If the epsilon value is high, behaviors with high Q-values are more likely to be selected, and if the epsilon value is low, random behaviors (exploration) are more likely to be selected.


3. Training model
   After the robot performs an action, it receives a reward or penalty for its behavior and checks to see if it reached its goal.



Machine Learning launch argument
stage_num

• default: 1
• describtion: The integer value of stage you want to run. This package has stations numbered 1 through 4, as described above.

max_training_episodes

• default: 1000
• describtion: The integer value of an episode you want to run.

load_episode

• default: 600
• describtion: The integer value of an episode you want to test. More complex stages may require more episodes to learn enough.



Run machine learning

1. Bring the stage in Gazebo map.

   $ ros2 launch turtlebot3_gazebo turtlebot3_dqn_{$stage_num}.launch.py





2. Run Gazebo environment node.
   This node manages the Gazebo environment. It regenerates the Goal and initializes the TurtleBot’s location when an episode starts anew.

   $ ros2 run turtlebot3_dqn dqn_gazebo {$stage_num}





3. Run DQN environment node.
   This node manages the DQN environment. It calculates the state of the TurtleBot and uses it to determine rewards, success, and failure.

   $ ros2 run turtlebot3_dqn dqn_environment





4. Run DQN agent node.
   This node trains the TurtleBot. It trains TurtleBot with calculated rewards and determines its next behavior.

   $ ros2 run turtlebot3_dqn dqn_agent {$stage_num} {$max_training_episodes}





5. Test traind model.
   After training, to test the trained model, run test node instead of DQN agent node.

   $ ros2 run turtlebot3_dqn dqn_test {$stage_num} {$load_episode}





Run machine learning graph

1. Action graph
   The Action graph shows the present TurtleBot’s action and their rewards, and the total rewards in an episode.

   $ ros2 run turtlebot3_dqn action_graph

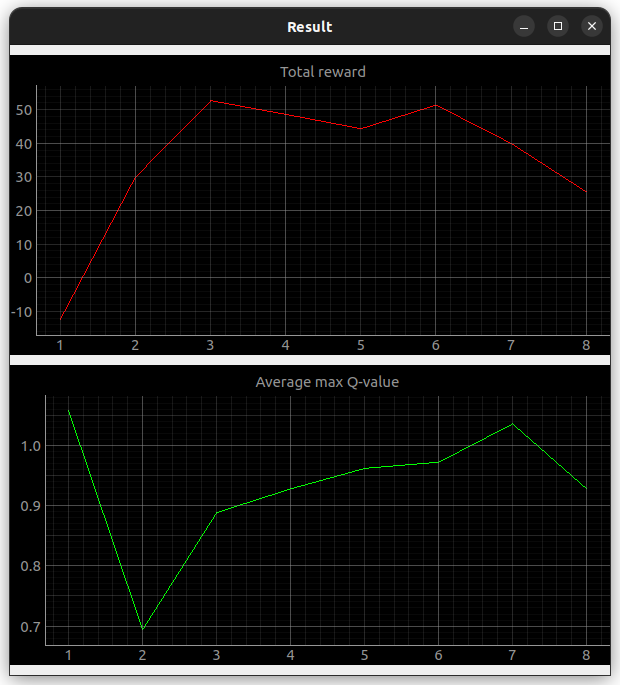

2. Result graph
   The Result graph is a linear plot of the average of the maximum values of Q-Value and the total reward as each episode progresses.

   $ ros2 run turtlebot3_dqn result_graph


   NOTE: The graph is recorded from the time you run the node. For full recording, turn it on before you start learning.



In this Machine Learning example, 24 Lidar samples are used, which should be modified as written in the Set parameters section.

Stage 1 (No Obstacle)

Stage 1 is a 4x4 map with no obstacles.

$ roslaunch turtlebot3_gazebo turtlebot3_stage_1.launch

Open another terminal and enter the command below.

$ roslaunch turtlebot3_dqn turtlebot3_dqn_stage_1.launch

If you want to see the visualized data, launch the graph.

$ roslaunch turtlebot3_dqn result_graph.launch

Stage 2 (Static Obstacle)

Stage 2 is a 4x4 map with four cylinders of static obstacles.

$ roslaunch turtlebot3_gazebo turtlebot3_stage_2.launch

Open another terminal and enter the command below.

$ roslaunch turtlebot3_dqn turtlebot3_dqn_stage_2.launch

If you want to see the visualized data, launch the graph.

$ roslaunch turtlebot3_dqn result_graph.launch

Stage 3 (Moving Obstacle)

Stage 2 is a 4x4 map with four cylinders of moving obstacles.

$ roslaunch turtlebot3_gazebo turtlebot3_stage_3.launch

Open another terminal and enter the command below.

$ roslaunch turtlebot3_dqn turtlebot3_dqn_stage_3.launch

If you want to see the visualized data, launch the graph.

$ roslaunch turtlebot3_dqn result_graph.launch

Stage 4 (Combination Obstacle)

Stage 4 is a 5x5 map with walls and two cylinders of moving obstacles.

$ roslaunch turtlebot3_gazebo turtlebot3_stage_4.launch

Open another terminal and enter the command below.

$ roslaunch turtlebot3_dqn turtlebot3_dqn_stage_4.launch

If you want to see the visualized data, launch the graph.

$ roslaunch turtlebot3_dqn result_graph.launch
