Just like the SLAM in Gazebo simulator, you can select or create various environments and robot models in virtual Navigation world. However, proper map has to be prepared before running the Navigation. Other than preparing simulation environment instead of bringing up the robot, Navigation Simulation is pretty similar to that of Navigation.

Launch Simulation World

Terminate all applications with Ctrl + C that were launced in the previous sections.

In the previous SLAM section, TurtleBot3 World is used to creat a map. The same Gazebo environment will be used for Navigation.

Please use the proper keyword among burger, waffle, waffle_pi for the TURTLEBOT3_MODEL parameter.

$ export TURTLEBOT3_MODEL=burger
$ roslaunch turtlebot3_gazebo turtlebot3_world.launch

$ export TURTLEBOT3_MODEL=burger
$ roslaunch turtlebot3_gazebo turtlebot3_house.launch

Run Navigation Node

Open a new terminal from Remote PC with Ctrl + Alt + T and run the Navigation node.

$ export TURTLEBOT3_MODEL=burger
$ roslaunch turtlebot3_navigation turtlebot3_navigation.launch map_file:=$HOME/map.yaml

Estimate Initial Pose

Initial Pose Estimation must be performed before running the Navigation as this process initializes the AMCL parameters that are critical in Navigation. TurtleBot3 has to be correctly located on the map with the LDS sensor data that neatly overlaps the displayed map.

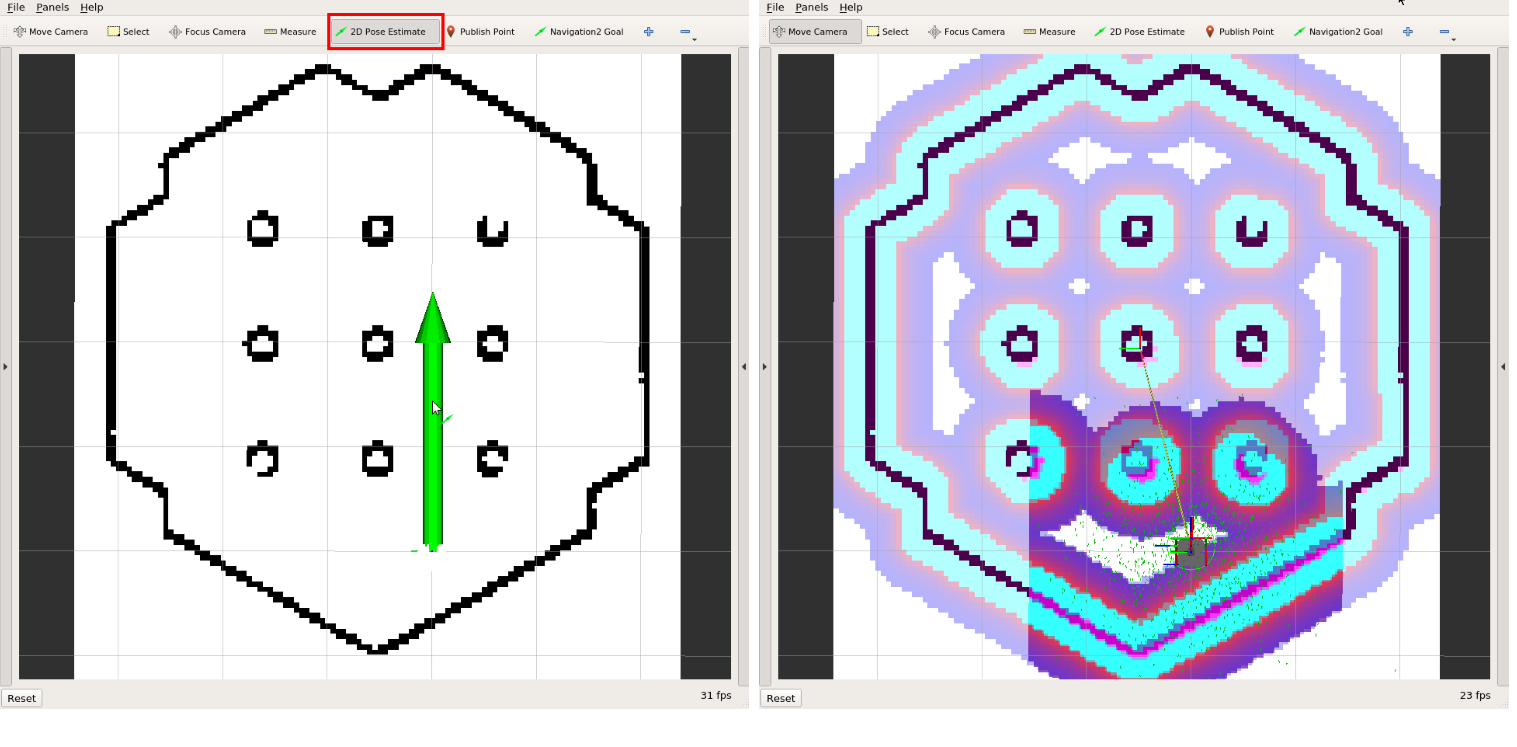

1. Click the 2D Pose Estimate button in the RViz menu.

2. Click on the map where the actual robot is located and drag the large green arrow toward the direction where the robot is facing.
3. Repeat step 1 and 2 until the LDS sensor data is overlayed on the saved map.
4. Launch keyboard teleoperation node to precisely locate the robot on the map.

   $ roslaunch turtlebot3_teleop turtlebot3_teleop_key.launch


5. Move the robot back and forth a bit to collect the surrounding environment information and narrow down the estimated location of the TurtleBot3 on the map which is displayed with tiny green arrows.

6. Terminate the keyboard teleoperation node by entering Ctrl + C to the teleop node terminal in order to prevent different cmd_vel values are published from multiple nodes during Navigation.

Set Navigation Goal

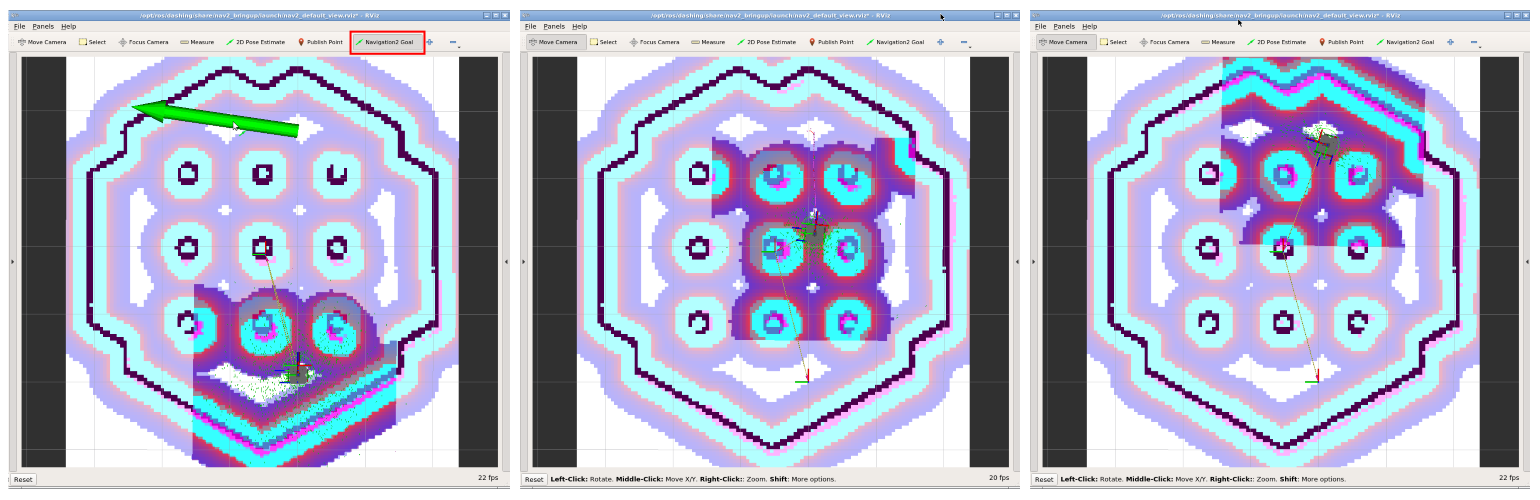

1. Click the 2D Nav Goal button in the RViz menu.

2. Click on the map to set the destination of the robot and drag the green arrow toward the direction where the robot will be facing.
   • This green arrow is a marker that can specify the destination of the robot.
   • The root of the arrow is x, y coordinate of the destination, and the angle θ is determined by the orientation of the arrow.
   • As soon as x, y, θ are set, TurtleBot3 will start moving to the destination immediately.

Just like the SLAM in Gazebo simulator, you can select or create various environments and robot models in virtual Navigation world. However, proper map has to be prepared before running the Navigation. Other than preparing simulation environment instead of bringing up the robot, Navigation Simulation is pretty similar to that of Navigation.

Launch Simulation World

Terminate all applications with Ctrl + C that were launced in the previous sections.

In the previous SLAM section, TurtleBot3 World is used to creat a map. The same Gazebo environment will be used for Navigation.

Please use the proper keyword among burger, waffle, waffle_pi for the TURTLEBOT3_MODEL parameter.

$ export TURTLEBOT3_MODEL=burger
$ roslaunch turtlebot3_gazebo turtlebot3_world.launch

$ export TURTLEBOT3_MODEL=burger
$ roslaunch turtlebot3_gazebo turtlebot3_house.launch

Run Navigation Node

Open a new terminal from Remote PC with Ctrl + Alt + T and run the Navigation node.

$ export TURTLEBOT3_MODEL=burger
$ roslaunch turtlebot3_navigation turtlebot3_navigation.launch map_file:=$HOME/map.yaml

Estimate Initial Pose

Initial Pose Estimation must be performed before running the Navigation as this process initializes the AMCL parameters that are critical in Navigation. TurtleBot3 has to be correctly located on the map with the LDS sensor data that neatly overlaps the displayed map.

1. Click the 2D Pose Estimate button in the RViz menu.

2. Click on the map where the actual robot is located and drag the large green arrow toward the direction where the robot is facing.
3. Repeat step 1 and 2 until the LDS sensor data is overlayed on the saved map.
4. Launch keyboard teleoperation node to precisely locate the robot on the map.

   $ roslaunch turtlebot3_teleop turtlebot3_teleop_key.launch


5. Move the robot back and forth a bit to collect the surrounding environment information and narrow down the estimated location of the TurtleBot3 on the map which is displayed with tiny green arrows.

6. Terminate the keyboard teleoperation node by entering Ctrl + C to the teleop node terminal in order to prevent different cmd_vel values are published from multiple nodes during Navigation.

Set Navigation Goal

1. Click the 2D Nav Goal button in the RViz menu.

2. Click on the map to set the destination of the robot and drag the green arrow toward the direction where the robot will be facing.
   • This green arrow is a marker that can specify the destination of the robot.
   • The root of the arrow is x, y coordinate of the destination, and the angle θ is determined by the orientation of the arrow.
   • As soon as x, y, θ are set, TurtleBot3 will start moving to the destination immediately.

Just like the SLAM in Gazebo simulator, you can select or create various environments and robot models in virtual Navigation world. However, proper map has to be prepared before running the Navigation. Other than preparing simulation environment instead of bringing up the robot, Navigation Simulation is pretty similar to that of Navigation.

Launch Simulation World

Terminate all applications with Ctrl + C that were launced in the previous sections.

In the previous SLAM section, TurtleBot3 World is used to creat a map. The same Gazebo environment will be used for Navigation.

Please use the proper keyword among burger, waffle, waffle_pi for the TURTLEBOT3_MODEL parameter.

$ export TURTLEBOT3_MODEL=burger
$ roslaunch turtlebot3_gazebo turtlebot3_world.launch

$ export TURTLEBOT3_MODEL=burger
$ roslaunch turtlebot3_gazebo turtlebot3_house.launch

Run Navigation Node

Open a new terminal from Remote PC with Ctrl + Alt + T and run the Navigation node.

$ export TURTLEBOT3_MODEL=burger
$ roslaunch turtlebot3_navigation turtlebot3_navigation.launch map_file:=$HOME/map.yaml

Estimate Initial Pose

Initial Pose Estimation must be performed before running the Navigation as this process initializes the AMCL parameters that are critical in Navigation. TurtleBot3 has to be correctly located on the map with the LDS sensor data that neatly overlaps the displayed map.

1. Click the 2D Pose Estimate button in the RViz menu.

2. Click on the map where the actual robot is located and drag the large green arrow toward the direction where the robot is facing.
3. Repeat step 1 and 2 until the LDS sensor data is overlayed on the saved map.
4. Launch keyboard teleoperation node to precisely locate the robot on the map.

   $ roslaunch turtlebot3_teleop turtlebot3_teleop_key.launch


5. Move the robot back and forth a bit to collect the surrounding environment information and narrow down the estimated location of the TurtleBot3 on the map which is displayed with tiny green arrows.

6. Terminate the keyboard teleoperation node by entering Ctrl + C to the teleop node terminal in order to prevent different cmd_vel values are published from multiple nodes during Navigation.

Set Navigation Goal

1. Click the 2D Nav Goal button in the RViz menu.

2. Click on the map to set the destination of the robot and drag the green arrow toward the direction where the robot will be facing.
   • This green arrow is a marker that can specify the destination of the robot.
   • The root of the arrow is x, y coordinate of the destination, and the angle θ is determined by the orientation of the arrow.
   • As soon as x, y, θ are set, TurtleBot3 will start moving to the destination immediately.

Just like the SLAM in Gazebo simulator, you can select or create various environments and robot models in virtual Navigation world. However, proper map has to be prepared before running the Navigation2. Other than preparing simulation environment instead of bringing up the robot, Navigation Simulation is pretty similar to that of Navigation.

Launch Simulation World

Terminate all applications with Ctrl + C that were launced in the previous sections.

In the previous SLAM section, TurtleBot3 World is used to creat a map. The same Gazebo environment will be used for Navigation.

Please use the proper keyword among burger, waffle, waffle_pi for the TURTLEBOT3_MODEL parameter.

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_gazebo turtlebot3_world.launch.py

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_gazebo turtlebot3_house.launch.py

Run Navigation Node

Open a new terminal from Remote PC with Ctrl + Alt + T and run the Navigation2 node.

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_navigation2 navigation2.launch.py use_sim_time:=True map:=$HOME/map.yaml

Estimate Initial Pose

Initial Pose Estimation must be performed before running the Navigation as this process initializes the AMCL parameters that are critical in Navigation. TurtleBot3 has to be correctly located on the map with the LDS sensor data that neatly overlaps the displayed map.

1. Click the 2D Pose Estimate button in the RViz2 menu.
2. Click on the map where the actual robot is located and drag the large green arrow toward the direction where the robot is facing.
3. Repeat step 1 and 2 until the LDS sensor data is overlayed on the saved map.
4. Launch keyboard teleoperation node to precisely locate the robot on the map.

   $ ros2 run turtlebot3_teleop teleop_keyboard


5. Move the robot back and forth a bit to collect the surrounding environment information and narrow down the estimated location of the TurtleBot3 on the map which is displayed with tiny green arrows.

6. Terminate the keyboard teleoperation node by entering Ctrl + C to the teleop node terminal in order to prevent different cmd_vel values are published from multiple nodes during Navigation.

Set Navigation Goal

1. Click the Navigation2 Goal button in the RViz2 menu.
2. Click on the map to set the destination of the robot and drag the green arrow toward the direction where the robot will be facing.
   • This green arrow is a marker that can specify the destination of the robot.
   • The root of the arrow is x, y coordinate of the destination, and the angle θ is determined by the orientation of the arrow.
   • As soon as x, y, θ are set, TurtleBot3 will start moving to the destination immediately.

Just like the SLAM in Gazebo simulator, you can select or create various environments and robot models in virtual Navigation world. However, proper map has to be prepared before running the Navigation2. Other than preparing simulation environment instead of bringing up the robot, Navigation Simulation is pretty similar to that of Navigation.

Launch Simulation World

Terminate all applications with Ctrl + C that were launced in the previous sections.

In the previous SLAM section, TurtleBot3 World is used to creat a map. The same Gazebo environment will be used for Navigation.

Please use the proper keyword among burger, waffle, waffle_pi for the TURTLEBOT3_MODEL parameter.

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_gazebo turtlebot3_world.launch.py

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_gazebo turtlebot3_house.launch.py

Run Navigation Node

Open a new terminal from Remote PC with Ctrl + Alt + T and run the Navigation2 node.

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_navigation2 navigation2.launch.py use_sim_time:=True map:=$HOME/map.yaml

Estimate Initial Pose

Initial Pose Estimation must be performed before running the Navigation as this process initializes the AMCL parameters that are critical in Navigation. TurtleBot3 has to be correctly located on the map with the LDS sensor data that neatly overlaps the displayed map.

1. Click the 2D Pose Estimate button in the RViz2 menu.
2. Click on the map where the actual robot is located and drag the large green arrow toward the direction where the robot is facing.
3. Repeat step 1 and 2 until the LDS sensor data is overlayed on the saved map.
4. Launch keyboard teleoperation node to precisely locate the robot on the map.

   $ ros2 run turtlebot3_teleop teleop_keyboard


5. Move the robot back and forth a bit to collect the surrounding environment information and narrow down the estimated location of the TurtleBot3 on the map which is displayed with tiny green arrows.

6. Terminate the keyboard teleoperation node by entering Ctrl + C to the teleop node terminal in order to prevent different cmd_vel values are published from multiple nodes during Navigation.

Set Navigation Goal

1. Click the Navigation2 Goal button in the RViz2 menu.
2. Click on the map to set the destination of the robot and drag the green arrow toward the direction where the robot will be facing.
   • This green arrow is a marker that can specify the destination of the robot.
   • The root of the arrow is x, y coordinate of the destination, and the angle θ is determined by the orientation of the arrow.
   • As soon as x, y, θ are set, TurtleBot3 will start moving to the destination immediately.

Just like the SLAM in Gazebo simulator, you can select or create various environments and robot models in virtual Navigation world. However, proper map has to be prepared before running the Navigation2. Other than preparing simulation environment instead of bringing up the robot, Navigation Simulation is pretty similar to that of Navigation.

Launch Simulation World

Terminate all applications with Ctrl + C that were launced in the previous sections.

In the previous SLAM section, TurtleBot3 World is used to creat a map. The same Gazebo environment will be used for Navigation.

Please use the proper keyword among burger, waffle, waffle_pi for the TURTLEBOT3_MODEL parameter.

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_gazebo turtlebot3_world.launch.py

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_gazebo turtlebot3_house.launch.py

Run Navigation Node

Open a new terminal from Remote PC with Ctrl + Alt + T and run the Navigation2 node.

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_navigation2 navigation2.launch.py use_sim_time:=True map:=$HOME/map.yaml

Estimate Initial Pose

Initial Pose Estimation must be performed before running the Navigation as this process initializes the AMCL parameters that are critical in Navigation. TurtleBot3 has to be correctly located on the map with the LDS sensor data that neatly overlaps the displayed map.

1. Click the 2D Pose Estimate button in the RViz2 menu.
2. Click on the map where the actual robot is located and drag the large green arrow toward the direction where the robot is facing.
3. Repeat step 1 and 2 until the LDS sensor data is overlayed on the saved map.
4. Launch keyboard teleoperation node to precisely locate the robot on the map.

   $ ros2 run turtlebot3_teleop teleop_keyboard


5. Move the robot back and forth a bit to collect the surrounding environment information and narrow down the estimated location of the TurtleBot3 on the map which is displayed with tiny green arrows.

6. Terminate the keyboard teleoperation node by entering Ctrl + C to the teleop node terminal in order to prevent different cmd_vel values are published from multiple nodes during Navigation.

Set Navigation Goal

1. Click the Navigation2 Goal button in the RViz2 menu.
2. Click on the map to set the destination of the robot and drag the green arrow toward the direction where the robot will be facing.
   • This green arrow is a marker that can specify the destination of the robot.
   • The root of the arrow is x, y coordinate of the destination, and the angle θ is determined by the orientation of the arrow.
   • As soon as x, y, θ are set, TurtleBot3 will start moving to the destination immediately.

NOTE: This feature is available for Kinetic, Noetic, Dashing, Foxy.
